Rithum

Control4

Control4

This pro plugin provides quick access to your configured Control4 button bindings or advanced programming from the Rithum Switch Scenes Screen and via standby gestures. It works with scenes across multiple rooms and zones so users have their most common actions at their fingertips.

User can also define which loads/zones to control from the Levels Screen and integrate Rithum Stat for full schedule control.

Resources

View full details

Trigger Anything in Control4

This plugin provides quick access to almost anything in Control4, using button bindings that you have already configured, or using advanced programming.

It is completely flexible, meaning you can decide exactly how it is implemented. These actions can be accessed from the Rithum Switch scenes screen and via standby gestures.

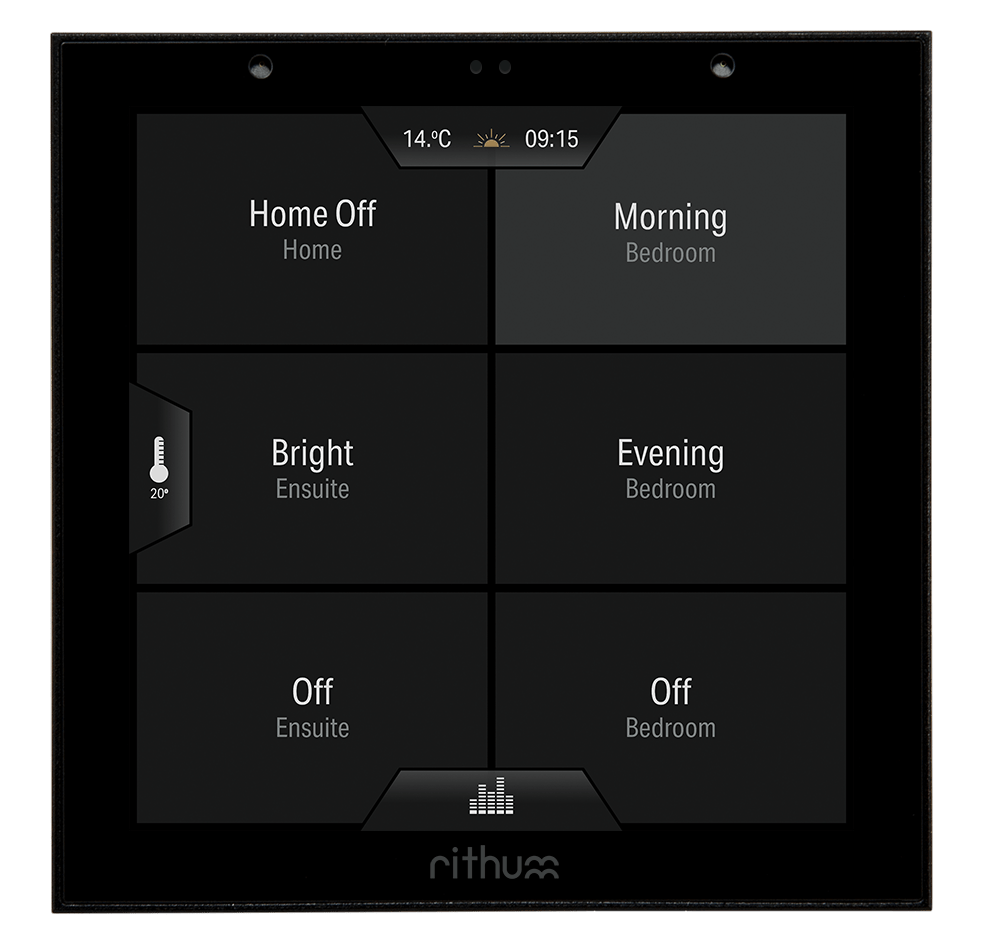

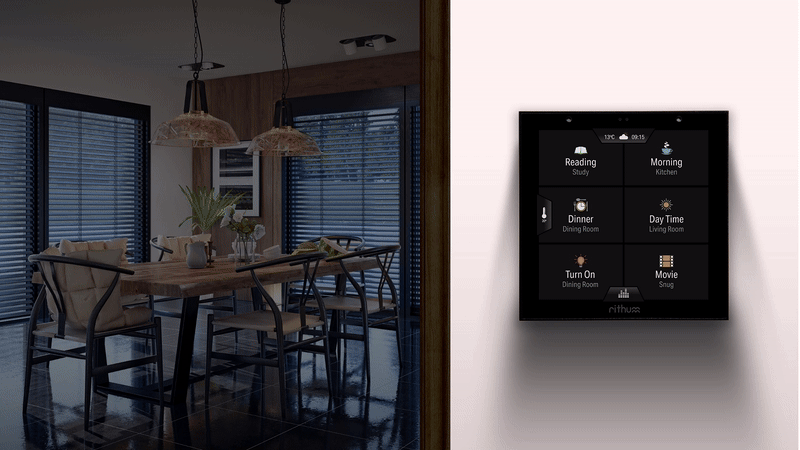

Use Single Scenes or Advanced Groups Scenes

Rithum Switch has 8 main buttons, but being able to collate sub-scenes in a group provides users with much wider control options. For example, a user could group 3 or 4 – or more – kitchen Scenes to one of the main 8 buttons.

Group Scenes work in one of three modes:

  • Macro mode (default): Triggers all of the Scenes in the group and can be useful to turn all lighting and audio off / on with the press of one button
  • List mode: Once pressed, this will display a pop-up list showing all Scenes within the group, which can be controlled independently. This is useful for grouping Scenes within a zone, for example, all lighting in the kitchen
  • Step mode: Pressing the Group Scene button will cycle through the grouped Scenes and display them one after the next, activating each one as it is displayed

Control4 Lighting

Using the Levels Screen, users are able to control the lighting levels at room level, for example all lights in the kitchen, or at individual device level. Simply use the toggles to switch groups or devices on or off, then use the sliders to adjust the levels as required.

Any lighting system that works with Control4 can be pulled through to Rithum and controlled in this way, and you can define exactly which circuits & zone are available, making it an incredibly powerful integration.

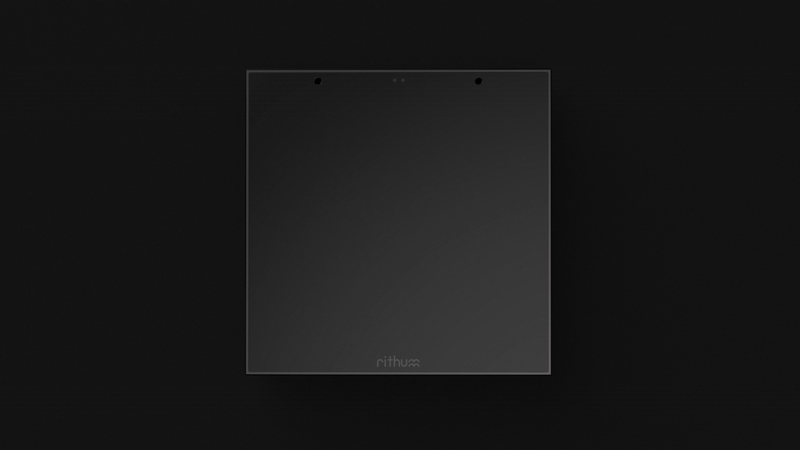

Standby Gesture Lighting Control

With the Control4 plugin, you can get the lights on as you move in and out of rooms using the hold standby gesture, without needing to wake the screen.

To adjust the scene, simply tap the screen to wake it and select one. The setup of Rithum is all done on the screen, with no additional app required.

Plus, if you have an audio system that Rithum is integrated with, you can also use the double tap gesture to play and pause audio.

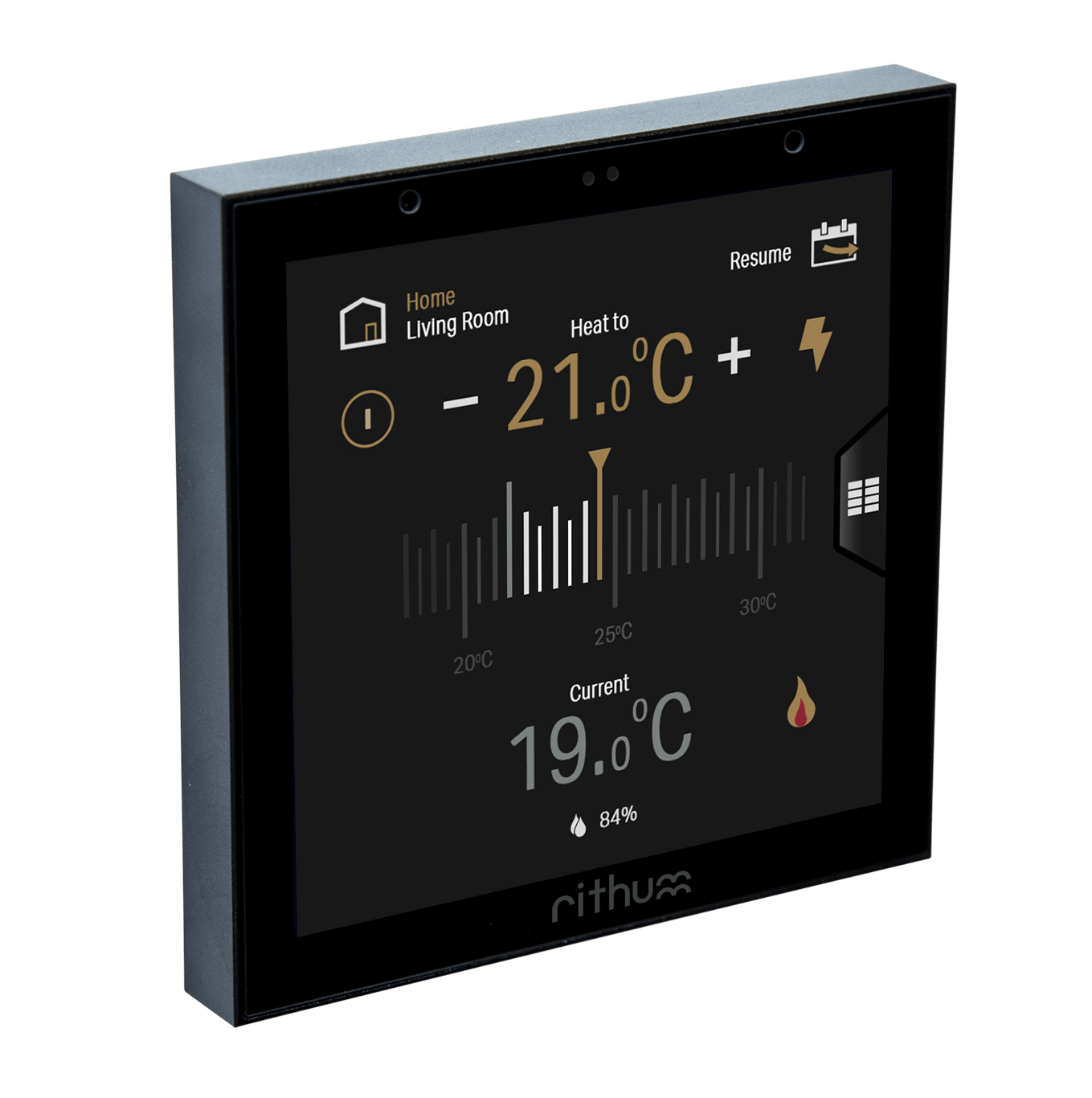

A Control4 Thermostat

Rithum Stat (Rithum's thermostatic software) will present as a thermostat device within Control4, which means you can not only control Rithum Stat’s setpoint from Control4 (including the Control4 scheduler), but also use the temperature sensor data, plus other parameters such as Heat Required, and even enable/disable the scheduler.

In addition, the Rithum Stat Heat On and Heat Off actions can be configured to trigger a Whatever you want in Control4, be it a relay to actuate the heating in a zone, or more complex logic that turns on pumps and the like..

Control4 Plugin Specification

  • Communication Type: Local / LAN

    Screens Supported: Scenes, Levels, Rithum Stat

    Plugin Type: Pro (Installer only)

    Release notes: Control4 Plugin

  • This plugin communicates with one or more Control4 processors over your local network (LAN) and support the scenes screen, levels screen, and Rithum Stat integration.

System Topology

  • Rithum Switch can communicate with one or more Control4 Processors on your local network simultaneously. This is alongside other systems that Rithum might be integrated with through other plugins.

Works with

This plugin can be installed on both Rithum Switch & Rithum Switch Pro
