KNX IP

KNX IP

Integrate Rithum Switch with KNX via IP using an IP Router that supports Tunneling Protocol. This pro plugin provides support for the Scenes and Levels Screens, offers standby gestures, and exposes Rithum’s temperature data to KNX.

Resources

View full details

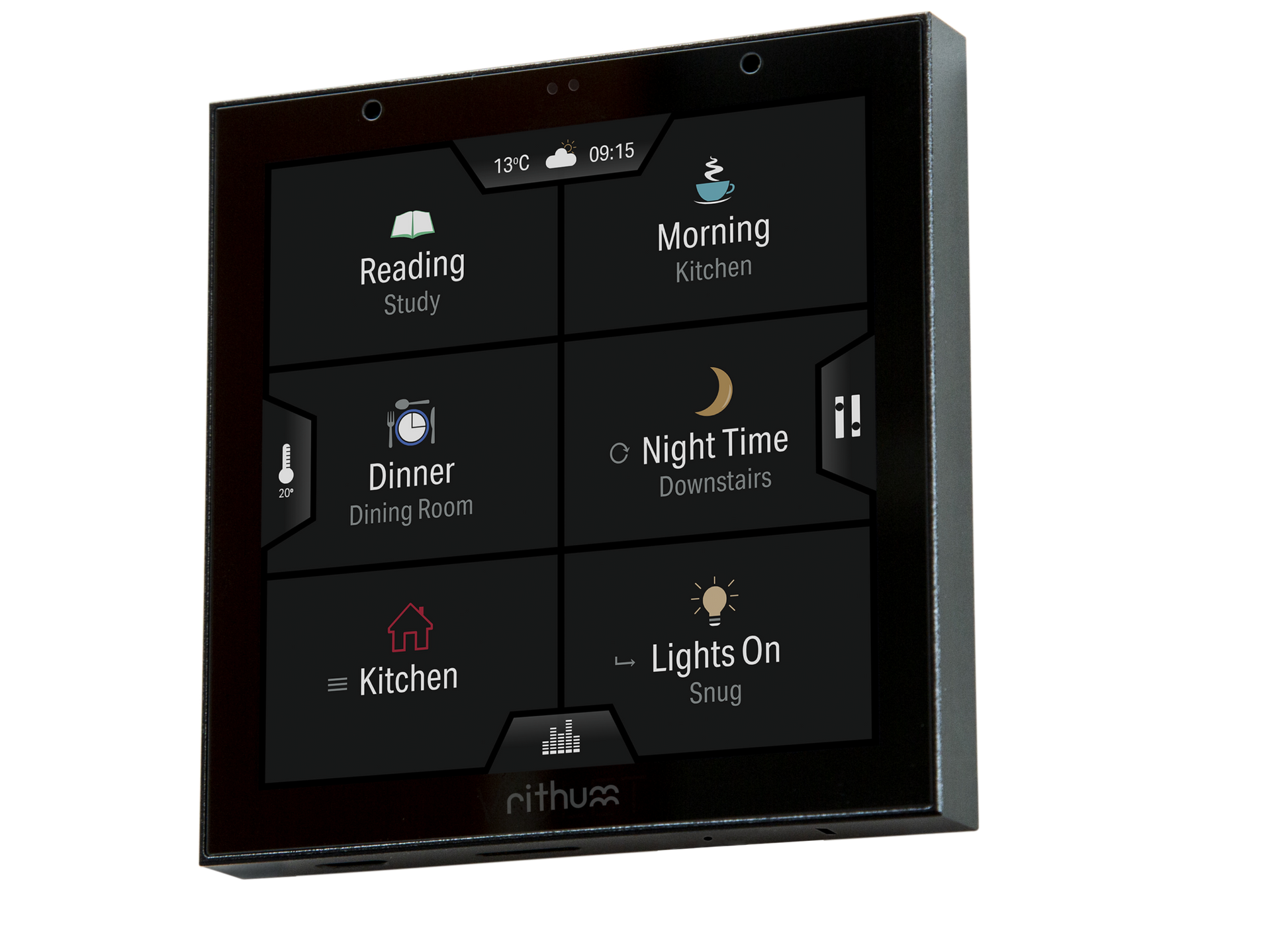

KNX IP Scene Control

This plugin provides quick access to almost any action on any group address in KNX from the Rithum's scenes screen and via standby gestures.

With highly versatile configuration, a scene button can trigger a KNX scene, set a dimming level, control motors and actuators and so much more.

If you can do it in KNX, you can trigger it from a Rithum scene or Group scene.

Advanced Groups Scenes

Rithum Switch has 8 main buttons, but being able to collate sub-scenes in a group provides users with much wider control options. For example, a user could group 3 or 4 – or more – kitchen Scenes to one of the main 8 buttons.

  • Macro mode (default): Triggers all of the Scenes in the group and can be useful to turn all lighting and audio off / on with the press of one button
  • List mode: Once pressed, this will display a pop-up list showing all Scenes within the group, which can be controlled independently. This is useful for grouping Scenes within a zone, for example, all lighting in the kitchen
  • Step mode: Pressing the Group Scene button will cycle through the grouped Scenes and display them one after the next, activating each one as it is displayed

KNX Dimming Control

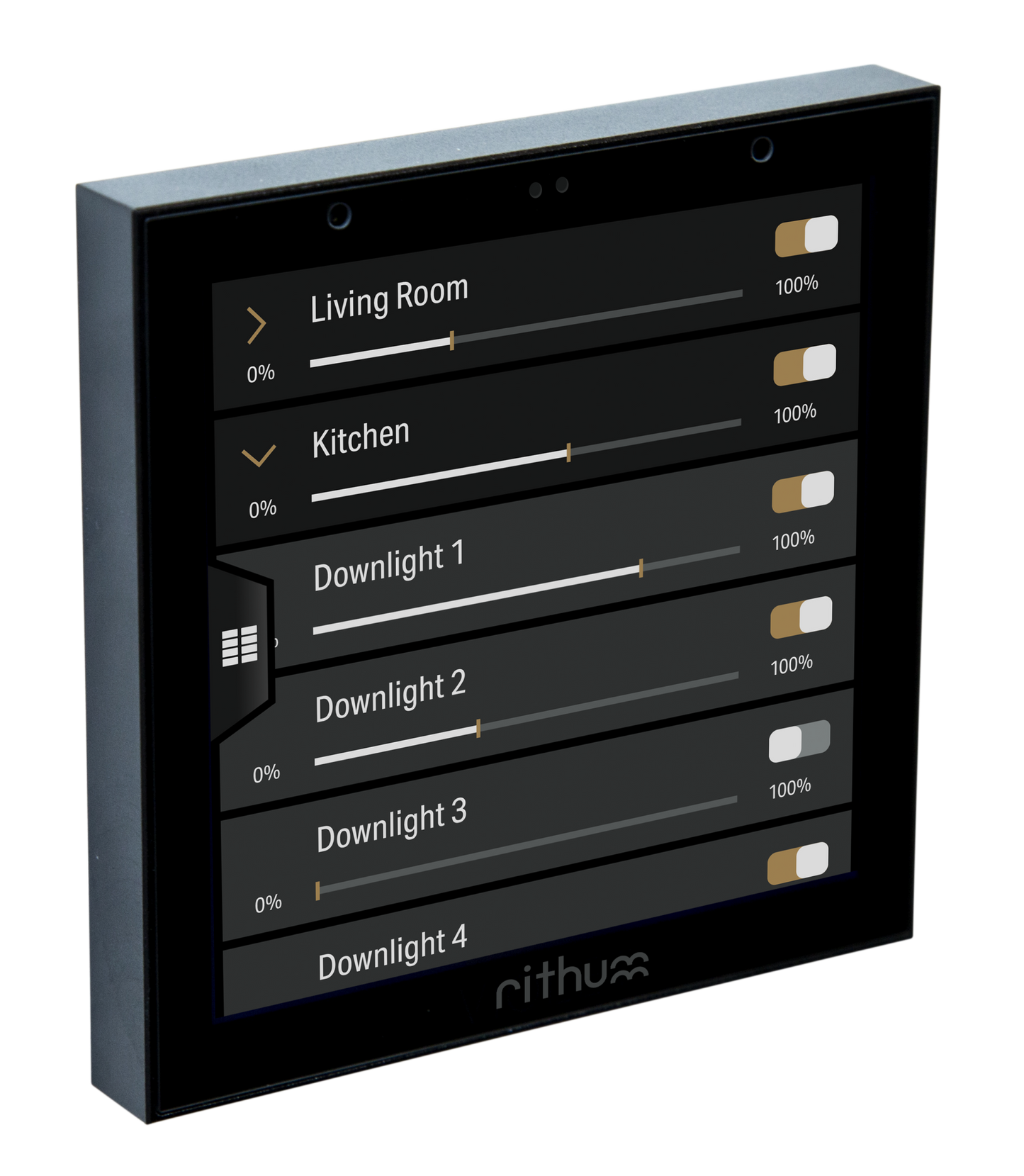

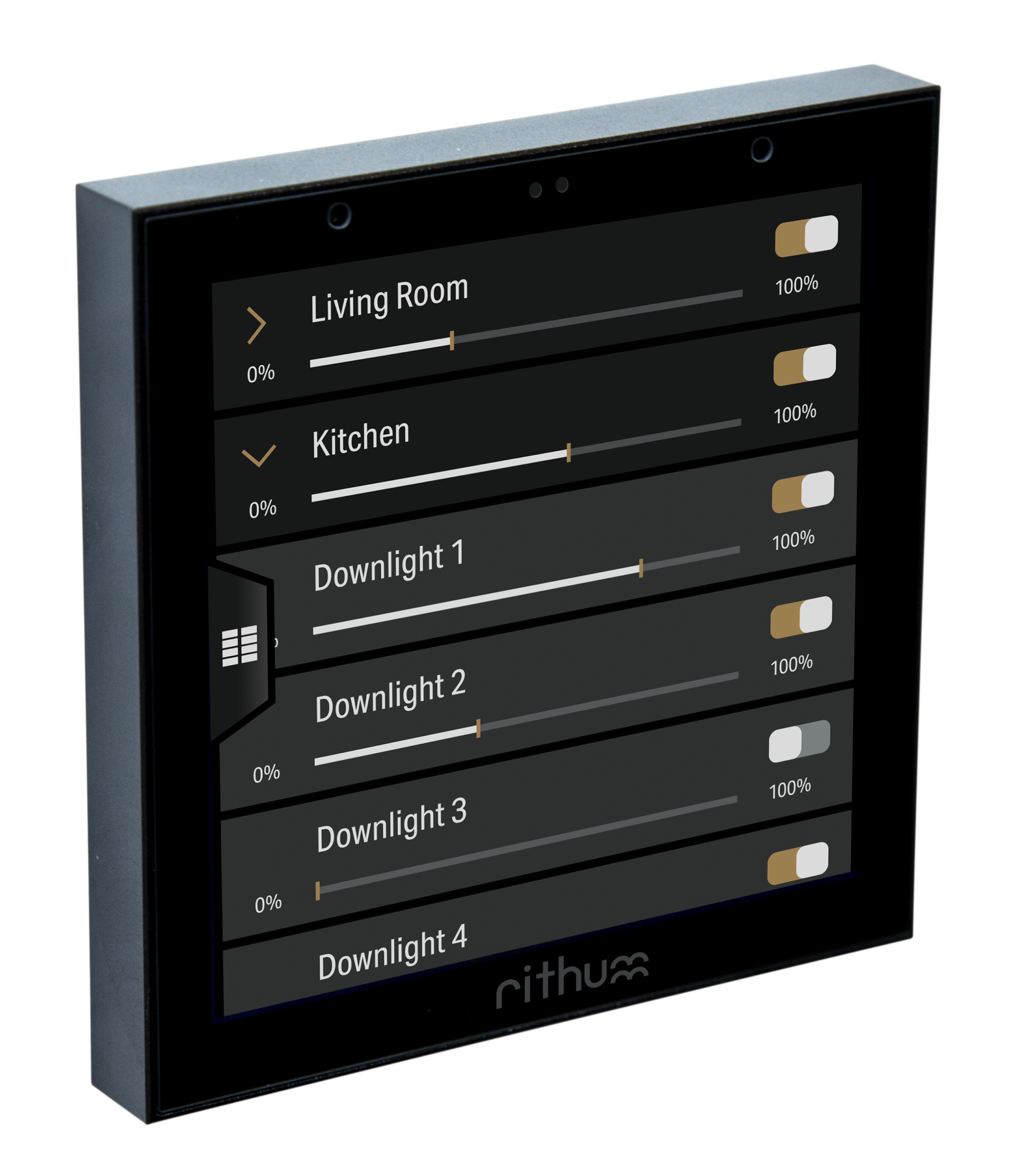

Using the Levels Screen, users are able to control the lighting levels at room level, for example all lights in the Kitchen, or at individual circuit level. Simply use the toggles to switch groups or devices on or off, then use the sliders to adjust the levels as required.

Standby Gesture Smart Bulb Control

Using the KNX IP plugin, you can get the lights on as you move in and out of rooms using the hold standby gesture, without needing to wake the screen.

To adjust the scene, simply tap the screen to wake it and select one.

Plus, if you have an audio system that Rithum is integrated with, you can also use the double tap gesture to play and pause audio.

Temperature Sensor Feedback

Using the KNX IP plugin, the temperature sensor data from Rithum Switch can be exposed to a KNX group address.

This data can then be fed use as part of the wider BMS or however deemed necessary.

KNX IP Plugin Specification

  • Communication Type: Local / LAN

    Screens Supported: Scenes, Levels

    Plugin Type: Pro (Installers only)

    Other info: Multiple TP gateways supported

  • This plugin communicates with one or more KNX IP gateways which support Tunnelling Protocol over your local network (LAN) and support the scenes screen and levels screen.

System Topology

  • Rithum can communicate with one or more KNX IP gateways which support Tunnelling Protocol on your local network simultaneously. This is alongside other systems that Rithum might be integrated with through other plugins.

Works with

This plugin can be installed on either Rithum Switch or Rithum Switch Pro.
